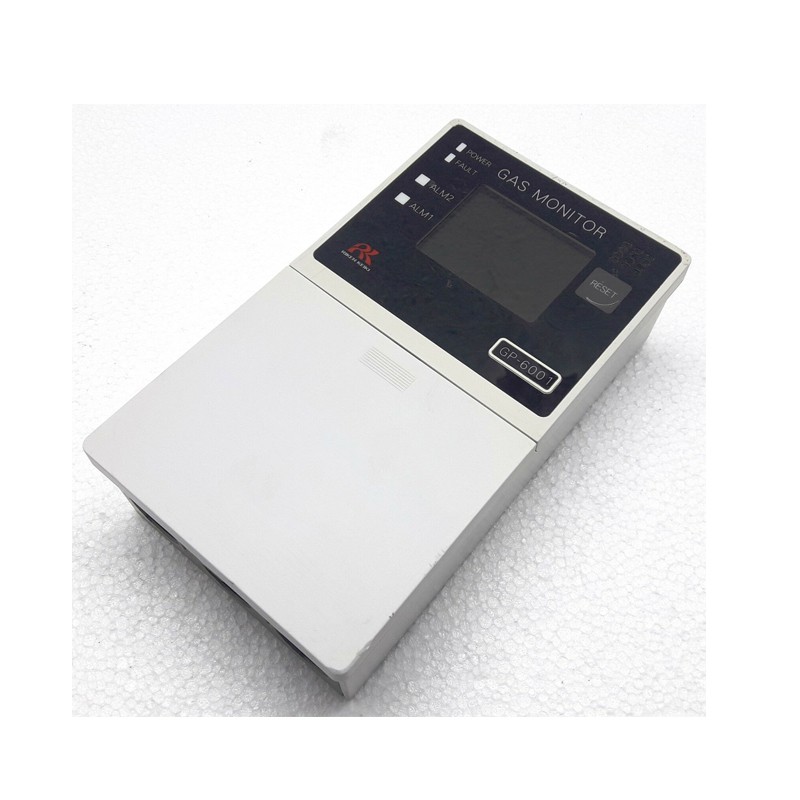

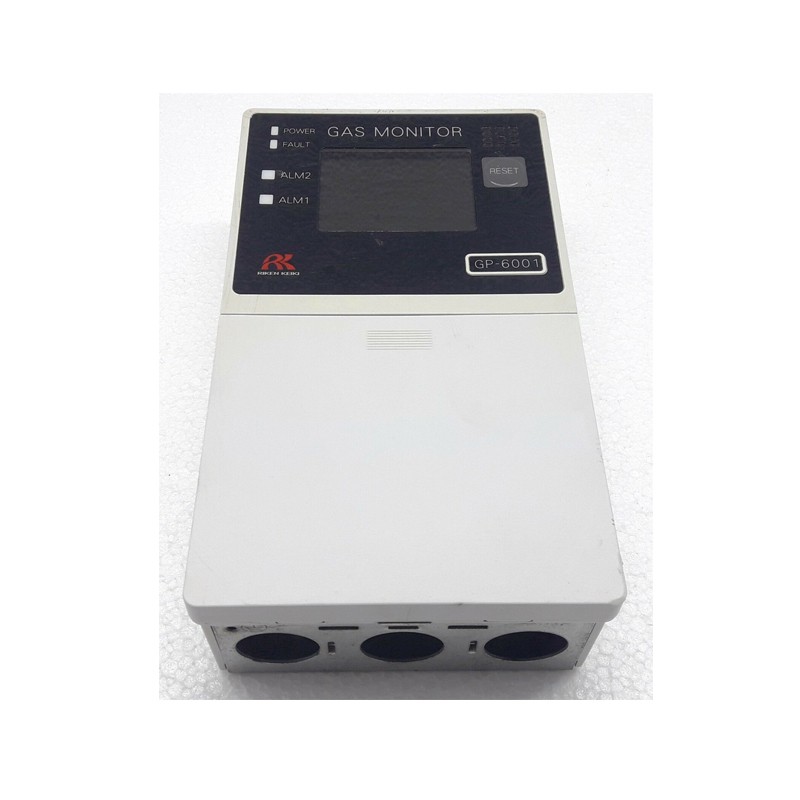

RIKEN KEIKI Single-channel Gas Monitor RM-6000 series
| Type | Indicator unit |
| Detection gas | Combustible, Toxic, Oxygen |
| Type of alarm | Gas alarm, Trouble alarm |
| Power source | 100VAC ~ 240VAC +/- 10% or 24VDC +/- 10% |
| Approvals | CE |
RM-6000 series
GP-6001, NC-6001(W), SP-6001, GH-6001, EC-6002, OX-6001, OX-6002, RM-6002, RM-6003
Detection gas
Combustible
Combustible / Toxic
Toxic
Oxygen
Combustible / Toxic / Oxygen
Indication
3-color LCD bar meter (52 dots)
Type of acceptable detector head
Catalytic combustion
New ceramic
New ceramic
Special catalytic / semiconductor combination sensor
Semiconductor
Electrochemical cell
Galvanic cell
Direct sensor signal
4-20mA output
Output of electric power transmission (non-isolated) 4-20mADC, max loop load 300 ohm
Alarm indication
Flashing or lighting lamp: Red(AL1), Red (AL2), Latching or non-latching, Locking mode
Trouble alarm
Orange lamp flashing (FAULT), Non-latching
Alarm relays
Normally energized or de-energized, Normally-open or closed contact
Rated 1A at 125VAC, 1A at 30VDC (resistive)
Operation condition
Rated 1A at 125VAC, 1A at 30VDC (resistive)
-10 -50°C, below 95%RH (non-condensing)
Power requirement
Ac type: 100 -240 VAC +/-10%
DC type: 24VDC +/-10%
DC type: 24VDC +/-10%
Dimensions & weight
Approx. 110 (W) x 190 (H) x 54 (D) mm, Wall mounting type: 580g / Panel mounting type: 650g
Mounting
Wall mounting type / Panel mounting type
