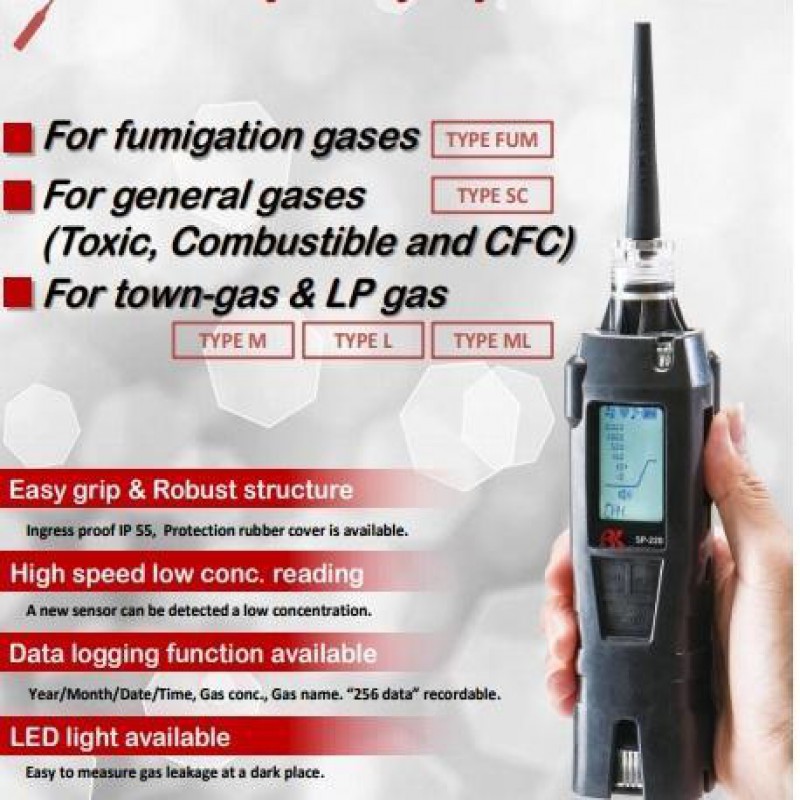

Type	Portable gas detector
Detection gas	For fumigation gases, For general gases
Sampling method	Pump draw
Explosion-proof	Ex-proof: IECEx, ATEX / Other: CE marking
Approvals	IECEx, ATEX / Other: CE marking

ข้อมูลจำเพาะและคุณสมบัติ

Specifications

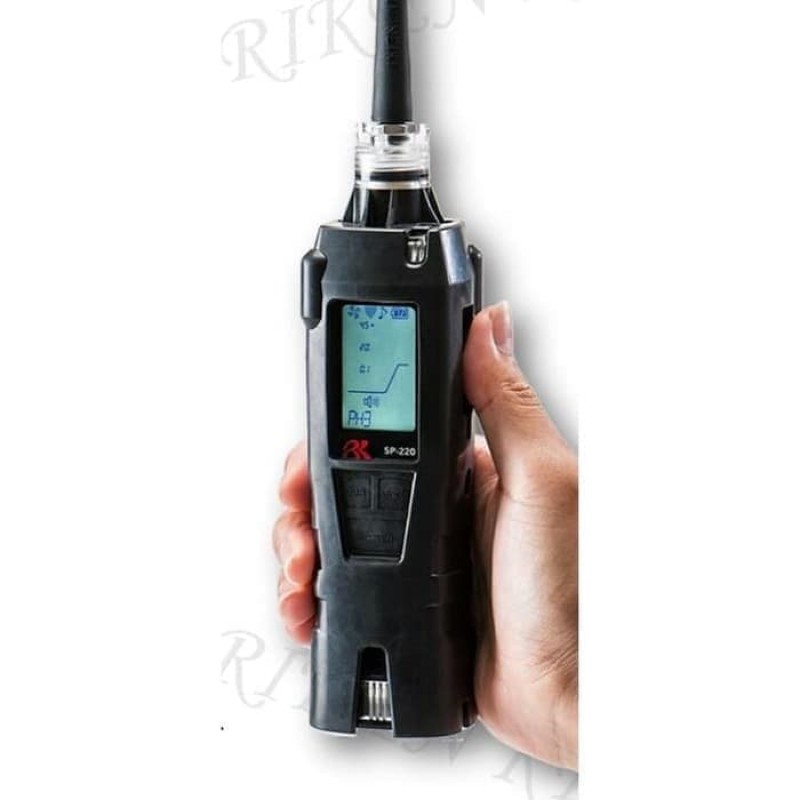

Model	SP-220 TYPE FUM (Fumigation)	SP-220 TYPE SC (Toxic, Combustible, CFC)
Target gas	Refer to the gas list
Detection principle	Hot-wire semiconductor method (MOS)
Sensor	SH-8662
Measuring range	Depends on target gas
Accuracy	Displays 0.1 ppm-bar when 0.3 ppm PH3 applied.
Alarm set point	Depends on target gas
Alarm pattern	Gas alarm : Gas concentration reached or over the setting point. Trouble alarm: Sensor connection / breaking, Low battery, Low flow Circuit error, Calibration error
Alarm method	Non-latching
Display of alarm	Gas alarm : Flashing LED, Buzzer Trouble alarm: Flashing LED, Buzzer, Display of error message
Sampling method	Sample draw
Response time	10 sec.: Time to reach 0.1 ppm when 0.3 ppm PH3 applied.
Output signal	IrDA
Control buttons	[AIR] [MODE] [POWER]
Display device	LCD
Display contents	Gas name, Gas concentration, Time, Battery, Pilot indicator, Pump display indicator, Sound
Power source	2 AA Alkaline batteries
Continuous operation	Greater than 12 hours
Operating temp. & humidity	-20~+55°C (-4°F~+131°F), 0~95%RH(Non-condensing)
Dimension & weight	7.87”(H) x 1.69”(D) x 1.85”(W) (Tapered nozzle not included), 7.5oz
Ingress rating	IP-55
Function	Manual LCD backlight (Automatically ON when alarming), Peak value, Snap logging, Time, Cal alarm
Standard accessories	Hand strap, Rubber cover, Tapered nozzle
