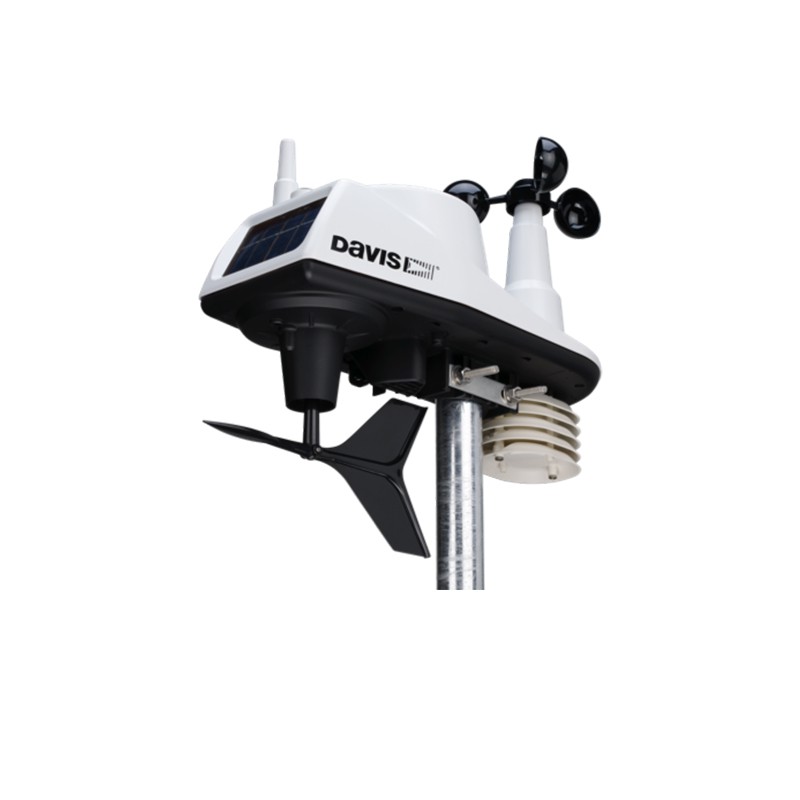

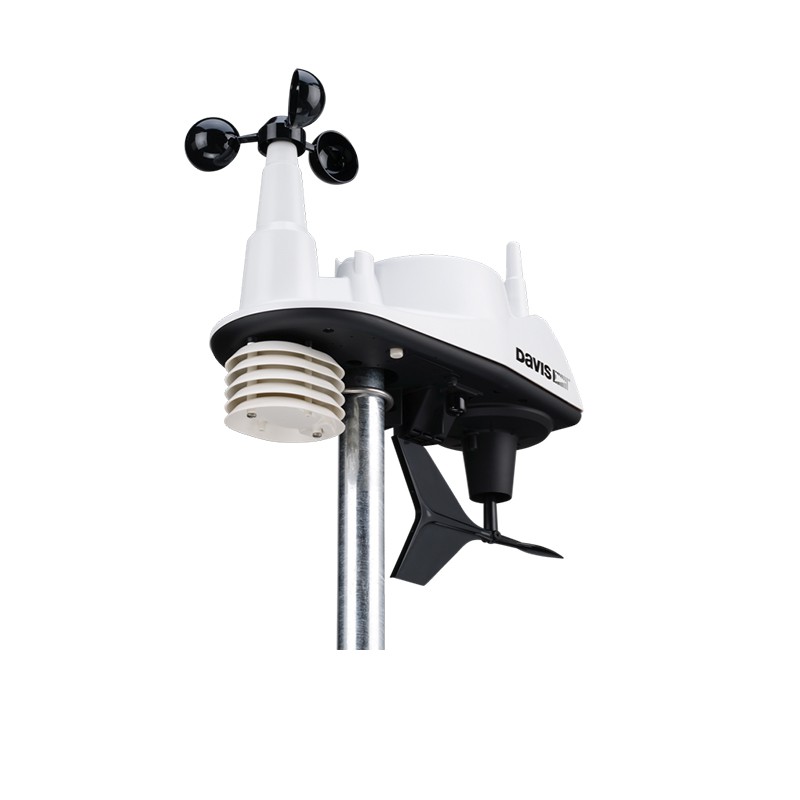

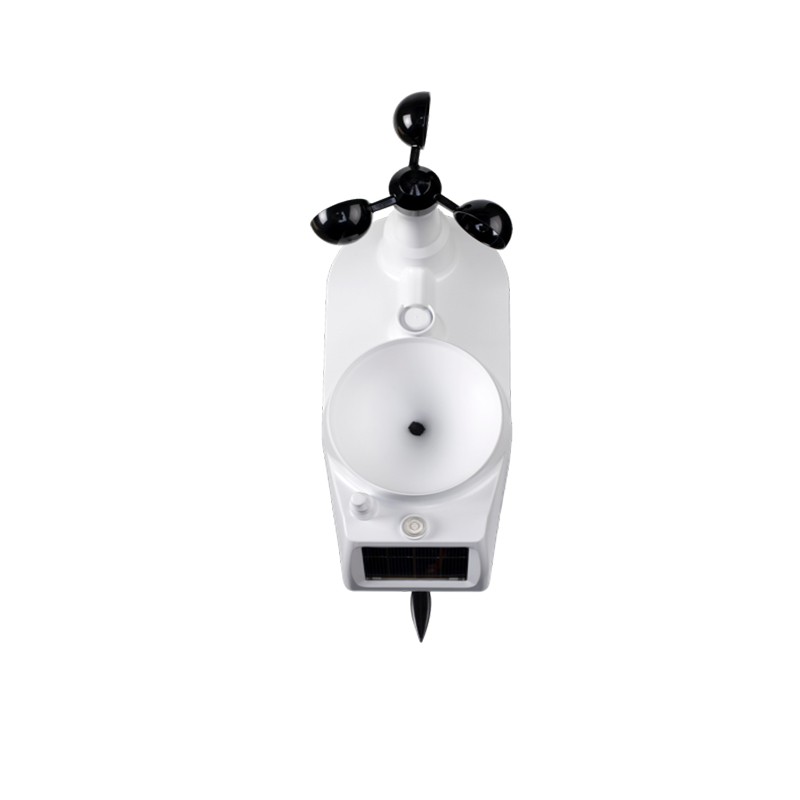

Sensor Suite

Operating Temperature

-40° to +150°F (-40° to +65°C)

Non-operating (Storage) Temperature

-40° to +158°F (-40° to +70°C)

Current Draw

0.20 mA (average), 30 mA (peak) at 3.3 VDC

Solar Power Panel

0.5 Watts

Battery

CR-123 3-Volt Lithium cell

Battery Life (3-Volt Lithium cell)

8 months without sunlight - greater than 2 years depending on solar charging

Wind Speed Sensor

Wind cups with magnetic detection

Wind Direction Sensor

Wind vane with magnetic encoder

Rain Collector Type

Tipping spoon, 0.01" (US versions)/0.2 mm (metric versions) per tip

Temperature Sensor Type

PN Junction Silicon Diode

Relative Humidity Sensor Type

Film capacitor element

Housing Material

UV-resistant ABS & ASA plastic

Sensor Suite Dimensions (not including mounting pole)

12.95" x 5.75" x 13.40" (329 mm x 146 mm x 340 mm)

Console

Operating Temperature

+32° to +140°F (0° to +60°C)

Non-Operating (Storage) Temperature

+14° to +158°F (-10° to +70°C)

Current Draw

0.9 mA average, 30 mA peak, (add 120 mA for display lamps, add 0.125 mA for each transmitter received by the console) at 4.4 VDC

Power Adapter

5 VDC, 300 mA

Battery Backup

3 C-cells

Battery Life (no AC power)

Up to 9 months (approximately)

Housing Material

UV-resistant ABS plastic

Console Display Type

LCD Transflective

Display Backlight

LEDs

Weight (with batteries)

1.48 lbs. (.67 kg)

Console Dimensions

7.5" x 5.75" x 4.5"
(190 mm x 146 mm x 114 mm)

Console with antenna mounted on wall (L x H x D)

7.5" x 7.0 " x 3.0"
190 mm x 178 mm x 76 mm

Display (L x H)

4.13" x 3.0"
(105 mm x 76 mm)
