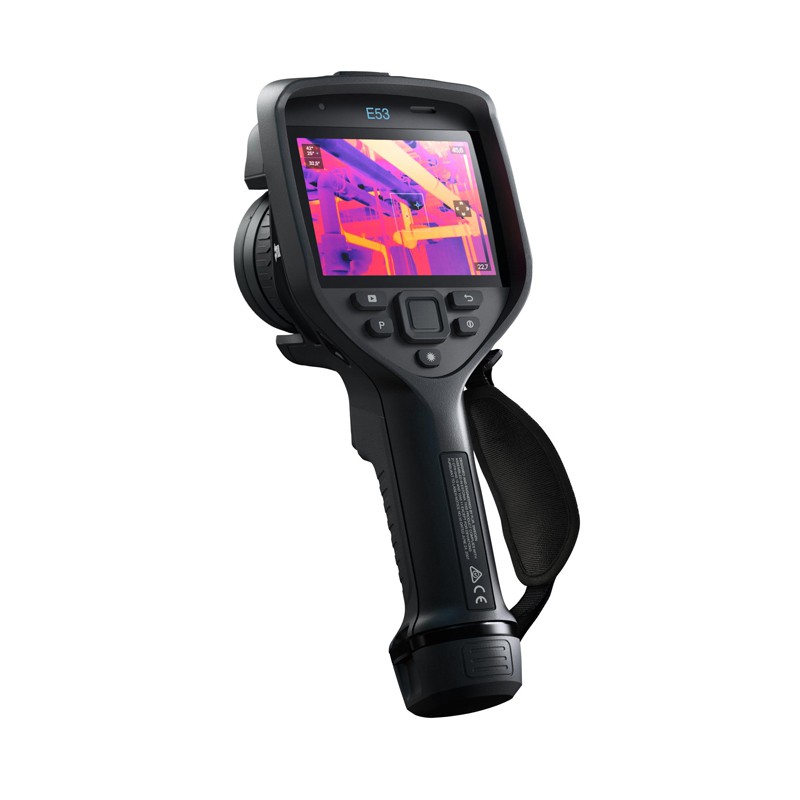

FLIR E53 Thermal Imaging Camera

The FLIR E53 is a rugged, easy to use pistol grip thermal imaging camera which is the simplest model in FLIRS range of EXX series of advanced thermal image cameras. The infrared camera features a combination of high-resolution infrared detectors; vast temperature range and the ability to detect small temperature differences. Ideally suited to locating electrical and/or mechanical faults in equipment The E53 can help identify overheated circuits, hot and cold zones, condensation, moisture damage and much more. This thermal camera has an infrared resolution of 240 x 180 pixels and a temperature range of -20°C to +650°C. Further to this, its 24° lens ensures that this thermal camera is able to detect temperature differences as slight as 0.04°C.

Features and Benefits


  • Infrared detectors have a resolution of 240 x 180 pixels
  • Vibrant LCD display with 43 200 pixels
  • Fast-response touch screen
  • offers 3 spotmeters and displays the max/min temperature within an area live, on-screen
  • Temperature range: -20°C to +650°C with optional calibrations.
  • 24° lens detects temperature differences as low as 0.04°C
  • MSX® image enhancement
  • Conveniently placed menu buttons for single-hand operation
  • Connect to FLIR’s clamps and multimeters using METERLiNK®
  • Ideal for locating failing components
  • Save images to cameras using new, improved folder and naming structure
Applications
  • Electrical
  • Mechanical
  • Building Inspections



Specifications
Temperature Measurement Range -20 → +650 °C
Detector Resolution 240 x 180pixel
Display Resolution 640 x 480pixel
Application Electrical, Mechanical
Model Number E53
Thermal Sensitivity <0.04 °C, 86 °F
Best Temperature Measurement Accuracy ±2 °C, ±3.6 °F
Focus Type Manual
Display Size 4in
Weight 1kg


FLIR E53 Thermal Imaging Camera

download
